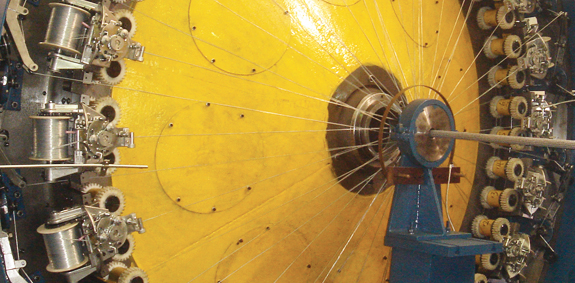

HIGH SPEED HORIZONTAL CABLE and TUBE BRAIDING MACHINES
GURFIL High Speed Horizontal Brading Machines are greatly accepted by cable and hose manufacturers because of high bobbin speed, high precision, high stability, low power consumption, and ease of operation and maintenance.
Horizontal machines divide in 4 categories
- 24 carrier machines
- 32 carrier machines
- 36 carrier machines
- 48 carrier machines
Properties:
- PLC Touch Screen with Turkish and English Menu
- Stepless speed adjusting
- Automatic tension adjusting
- Automatic fault indication system
- Security Frame with Sound Isolation
- Automatic lubricating
- Catterpillar syncronized with the main machine
| Binding | 2over2 | 2over2 | 2over2 |
|---|---|---|---|
| Braiding Direction | Horizontal | Horizontal | Horizontal |
| Bobin Numbers | 24 (12,12) | 32 (16,16) | 36 (18,18) |
| Bobin Size | 110 / 45 / 55 outer dia./discap *inner dia./iccap *inner width |
110 / 45 / 55 outer dia./discap *inner dia./iccap *inner width |
110 / 45 / 55 outer dia./discap *inner dia./iccap *inner width |
| Bobin Speed | 15-45 rpm | 32 rpm | 8-30 rpm |
| Braiding Pitch | 27 - 270mm | 27 - 270mm | 27 - 270mm |
| Max. Braiding Wire Dia | 60mm | 75mm | 90mm |
| Max. Produce Speed | 729 m/hour | 518 m/hour | 453 m/hour |
| Max. Braiding Thread Dia. | 0.40mm | 0.40mm | 0.40mm |
| Main Motor Power | 5,5 Kw | 5,5 Kw | 7,5 Kw |
| Configuration Size | 1700* 1500* 1800mm | 1720* 1830* 2140mm | 2000* 2100* 2340mm |
| Net Weight | 2500 Kg | 3150 Kg | 3500 Kg |
| Warranty | 1 Year | 1 Year | 1 Year |
Gurfil Machinery Division provides commissioning, after sales service and all the spare parts from its warehouse with professional service personnel 7 days a week 24 hours a day.
